Product Name: AD7792BRUZ-REEL
Product Overview:
The AD7792BRUZ-REEL is a high-precision, low-power, 24-bit sigma-delta analog-to-digital converter (ADC) designed for applications that require accurate and reliable conversion of analog signals into digital data. With its exceptional performance specifications, flexible operating modes, and integrated features, this ADC provides engineers and designers with a versatile solution for a wide range of measurement and sensor interface applications.
Key Features:
- High Resolution: The AD7792BRUZ-REEL offers a resolution of 24 bits, ensuring accurate and precise conversion of analog signals into digital data with excellent dynamic range and low noise performance.
- Low Power Consumption: It features low power consumption, making it suitable for battery-powered and low-power applications where power efficiency is crucial.
- Flexible Input Configuration: The ADC supports differential and pseudo-differential input configurations, allowing for versatile interface options with different types of sensors and signal sources.
- Integrated Signal Conditioning: It includes an integrated programmable gain amplifier (PGA) and a low-pass filter, offering enhanced signal conditioning capabilities and simplifying system design.
- Multiple Operating Modes: The AD7792BRUZ-REEL supports continuous conversion mode, single conversion mode, and power-down mode, allowing for flexible operation and power management.
- SPI-Compatible Serial Interface: It utilizes a serial peripheral interface (SPI) for easy integration with microcontrollers and digital signal processors (DSPs), enabling efficient data transfer and control.
- Internal Reference: The ADC incorporates an internal reference, eliminating the need for an external reference and simplifying system design.
- Wide Supply Voltage Range: The ADC operates from a wide supply voltage range of 2.7V to 5.25V, enabling compatibility with a variety of power supply configurations.
Applications:
- Sensor Interface: The AD7792BRUZ-REEL is ideal for sensor interface applications, including temperature sensors, pressure sensors, strain gauges, and load cells, where accurate and high-resolution analog-to-digital conversion is required.
- Weighing Systems: It finds applications in weighing systems, such as industrial scales, laboratory balances, and retail scales, where precise and reliable weight measurements are essential.
- Industrial Process Control: The ADC can be used in industrial process control applications, including data acquisition systems, flow meters, and level sensors, where accurate and stable analog-to-digital conversion is crucial.
- Medical Instruments: It is suitable for medical instruments, including patient monitoring devices, infusion pumps, and blood glucose meters, where accurate and precise measurement of physiological parameters is critical.
- Test and Measurement Instruments: The AD7792BRUZ-REEL can be used in test and measurement instruments, such as multimeters, data loggers, and spectrum analyzers, where high-precision analog-to-digital conversion is required.
Table: Technical Specifications
| Specification | Value |
| Resolution | 24 bits |
| Conversion Time | < 1 ms |
| Input Configuration | Differential, Pseudo-differential |
| Supply Voltage Range | 2.7V to 5.25V |
| Power Consumption | < 1 mW |
| Operating Temperature | -40°C to +125°C |
| Package | 20-Lead TSSOP |
The AD7792BRUZ-REEL is a high-precision, low-power, 24-bit sigma-delta ADC that provides exceptional resolution, low power consumption, and flexible operating modes for accurate analog-to-digital conversion. With its integrated signal conditioning, wide supply voltage range, and versatile input configuration, it offers engineers and designers the flexibility and precision required for a variety of measurement and sensor interface applications. Whether in sensor interfaces, weighing systems, or industrial process control, the AD7792BRUZ-REEL delivers outstanding performance and ensures reliable and accurate analog-to-digital conversion. Choose the AD7792BRUZ-REEL for your next design and experience the benefits of high-precision ADC technology.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

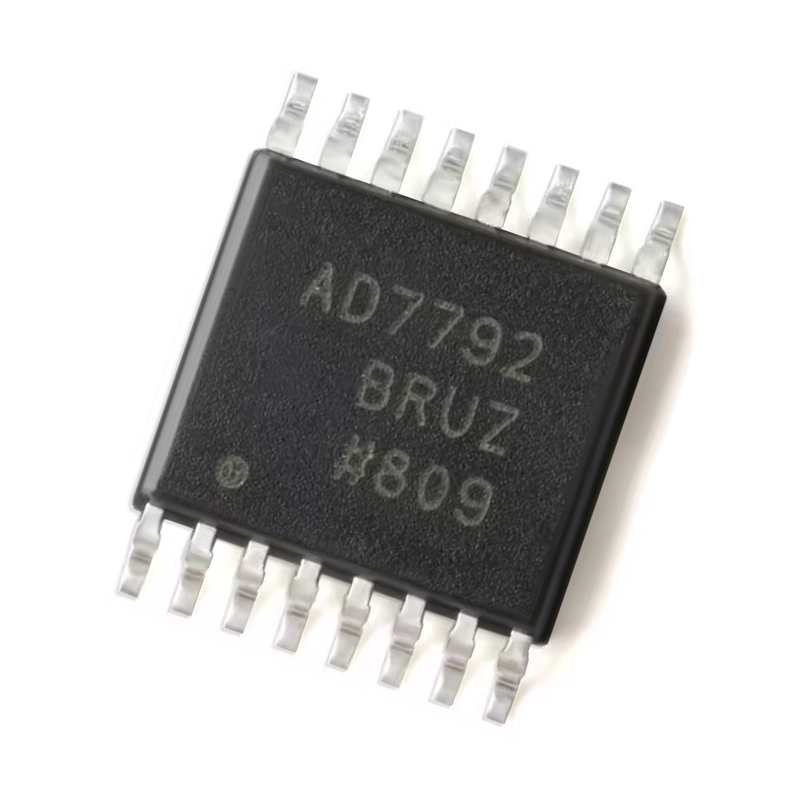

Support BOM Quotation TSSOP-16 AD7792BRUZ-REEL Images
|
