Product Model: ADUM1401ARWZ-RL
Product Description:
The ADUM1401ARWZ-RL is a high-performance and versatile digital isolator designed to provide secure signal isolation in a wide range of industrial, automotive, and communications applications. With its advanced features, robust design, and exceptional performance, this digital isolator ensures reliable signal transmission and protection between different systems or subsystems.
Key Features:
-
Dual-Channel Isolation: The ADUM1401ARWZ-RL offers dual isolation channels, enabling secure isolation of two independent signal or data paths. It ensures reliable communication between isolated systems, making it suitable for applications that require isolation between critical components or subsystems.
-
High-Speed Operation: With a maximum data rate of 25 Mbps, this digital isolator enables fast and efficient communication between isolated systems. It can handle high-speed data and control signals without compromising signal integrity, ensuring reliable data transmission.
-
Wide Voltage Range: The ADUM1401ARWZ-RL supports a wide range of input and output voltage levels, providing flexibility for various applications. It operates with input voltages ranging from 3.0 V to 5.5 V and output voltages ranging from 1.8 V to 5.5 V, making it compatible with different voltage levels.
-
Robust Design: This digital isolator is built with a robust design to withstand harsh operating conditions. It offers excellent resistance to shock, vibration, and temperature variations, ensuring long-term reliability in demanding environments.
-
Low Power Consumption: The ADUM1401ARWZ-RL is designed with low power consumption, making it energy-efficient and suitable for power-sensitive applications. It helps minimize energy usage and extends battery life, making it ideal for portable or battery-powered devices.
-
Compact Package: With its compact form factor package, the ADUM1401ARWZ-RL is easy to integrate into space-constrained designs. Its small footprint saves valuable board space and simplifies PCB layout, making it suitable for applications with size limitations.
Table: Product Specifications
| Specification | Value |
| Number of Channels | 2 |
| Maximum Data Rate | 25 Mbps |
| Input Voltage Range | 3.0 V to 5.5 V |
| Output Voltage Range | 1.8 V to 5.5 V |
| Operating Temperature Range | -40°C to +125°C |
| Package | RWZ-RL (Compact form factor) |
| Power Consumption | Low power design |
| Applications | Industrial, automotive, communications |
Applications:
The ADUM1401ARWZ-RL digital isolator is suitable for a wide range of applications that require reliable signal isolation. Here are some key application areas:
-
Industrial Automation: It can be used in industrial control systems, motor drives, and PLCs (Programmable Logic Controllers) to provide isolation between different control and power stages, ensuring safety and protecting sensitive components.
-
Automotive Electronics: The ADUM1401ARWZ-RL is suitable for automotive applications such as battery management systems, body control modules, and infotainment systems. It provides isolation between different subsystems, protecting sensitive electronics and ensuring reliable operation.
-
Communication Systems: It can be utilized in network interfaces, data acquisition systems, and communication modules to provide isolation for reliable signal transmission and protect sensitive equipment from ground loops and voltage spikes.
-
Power Electronics: The digital isolator is ideal for power supplies, inverters, and motor drives, enabling isolation between high-voltage and low-voltage circuits, reducing noise interference, and improving overall system performance.
-
Medical Devices: It can be integrated into medical equipment, patient monitoring systems, and diagnostic instruments to provide isolation for sensitive circuits and ensure patient safety.
In conclusion, the ADUM1401ARWZ-RL is a high-performance and versatile dual-channel digital isolator that offers advanced features, low power consumption, and exceptional performance. With its dual-channel isolation, high-speed operation, wide voltage range, and robust design, it is an ideal choice for various industrial, automotive, and communications applications that require reliable signal isolation and integrity.
Amplifier,Power Management ICs,Memory ICs,MCU,Microcontroller,Data Acquisition ICs,Embedded Processor,Clock Timing ICs,Interface ICs,Logic ICs,Radio Frequency ICs,Sensor,Discrete Semiconductor Products,Electronics Passive Components
Visit www.gselectro.com for more information
|
|

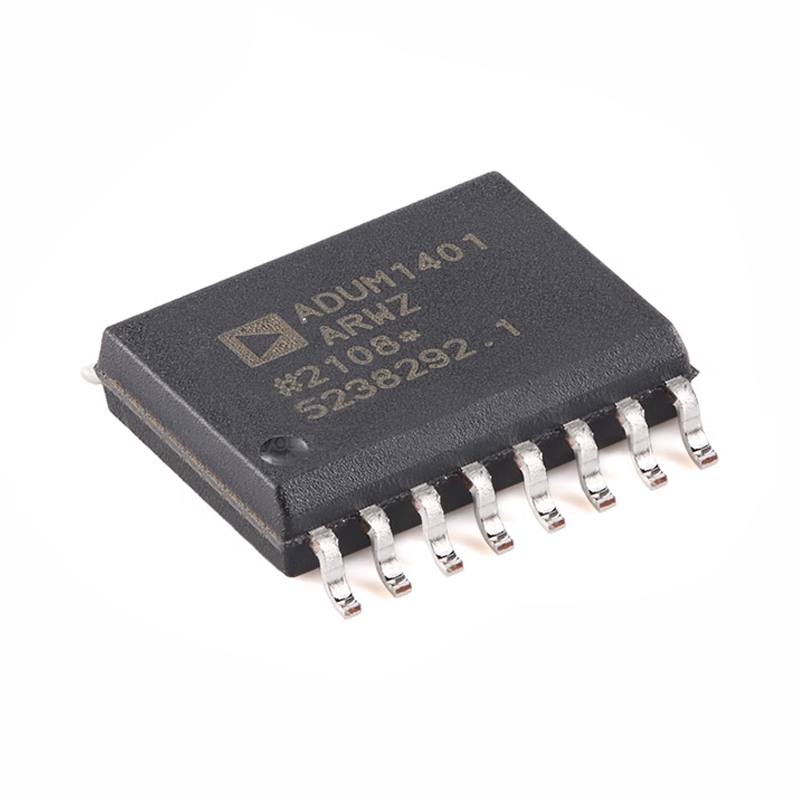

Original And New ADUM1401 16-SOIC DGTL ISO 2500VRMS 4CH GP ADUM1401ARWZ-RL Images
|
